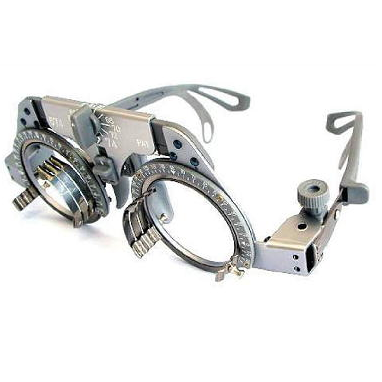

  • bicoh universal trial frame 674

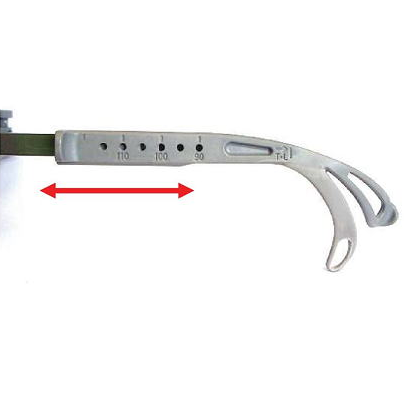

  • bicoh universal trial frame 674

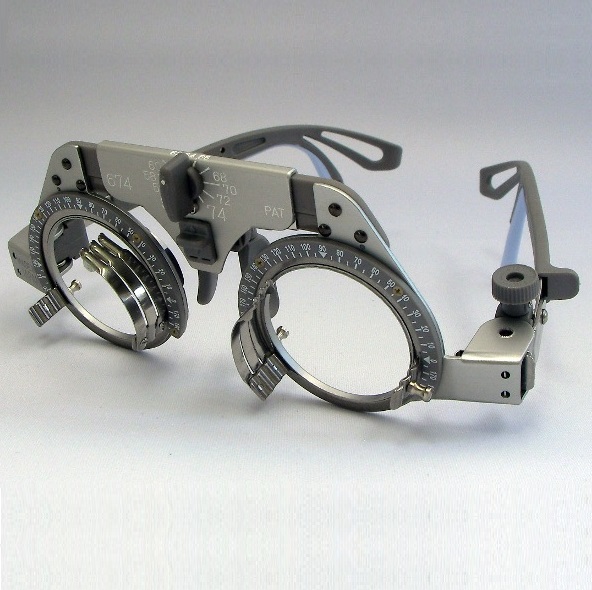

Universal Trial Frame (674 Simple)

FEATURES:

Dual Hold Temple Tip (Side & downward direction)

Half Rim Type (For Progressive Lens available)

Fixed P.D.
PD Size: 11 sizes from 54mm to 74mm, with 2mm interval.

Light weight
Less Than 50g without lenses

Axis of astigmatism
Provides each 5°

Nose pad
Adjustable in width and height

Temple
Adjustable in angle and length, with NON SLIP temple tips.



Category:

Simple BC Trial Frame with Fixed PD

Made in Japan

FUNTIONS:




Adjustable PD
Turn this dial to select wide range of PD 54mm to 74mm

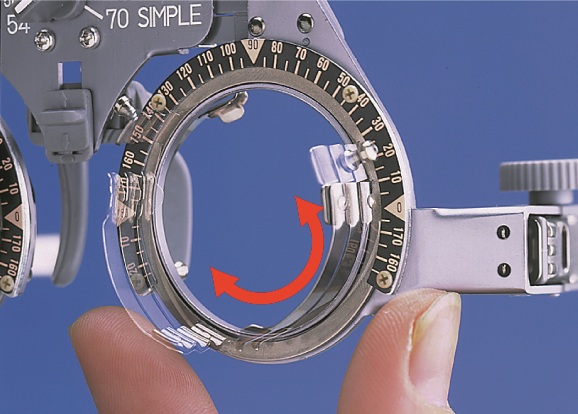

MD674_Cyl

Axis of astigmatism
To move the ring with fingertip control, provides smooth and precise adjustment of 5 axis steps. (3 lens in front and 1 in back)

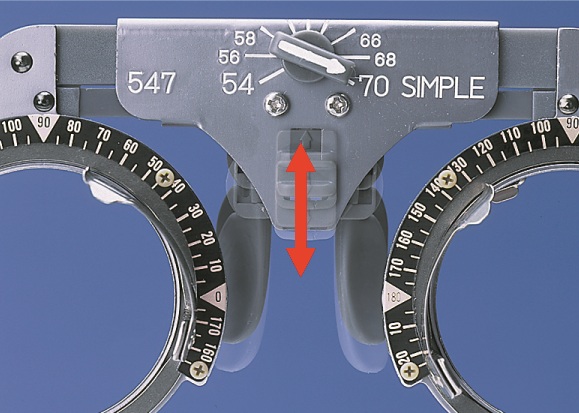

MD674_PH

Progressive lens use
Set it lower position gives more comfortable for examine.

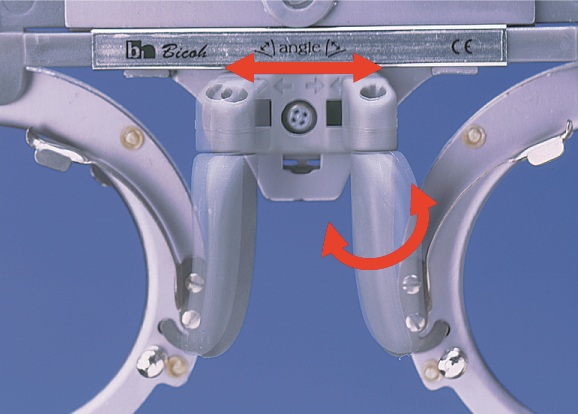

MD674_PAdjust

Adjustable nose pad
To fit all patients comfortably. There are two positions moving.

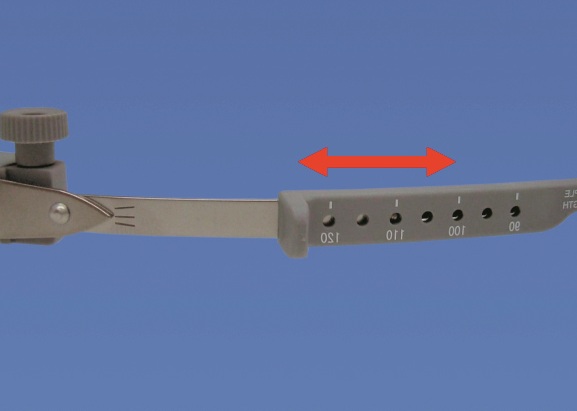

MD674_TLength

Elongation of temple tip
Hold the hinge and temple tip, then stretch them opposite side. Moves about 30mm in each 5mm, will cover most patients head.

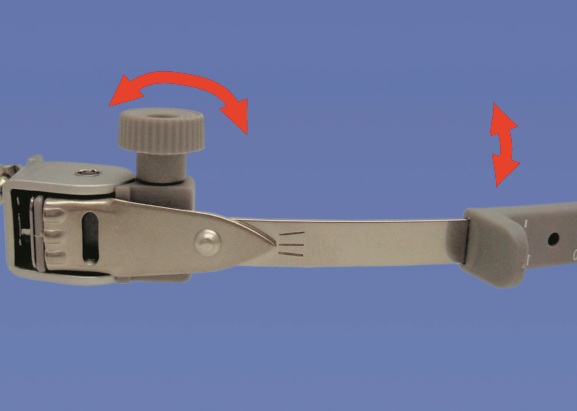

MD674_TAdjust

Inclination of temple
Small plastic dial on the temple will provide 14 degrees in angle with simple action of turn.
