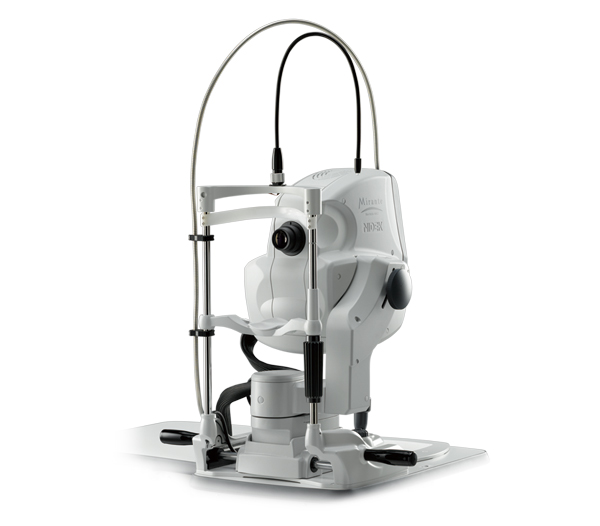

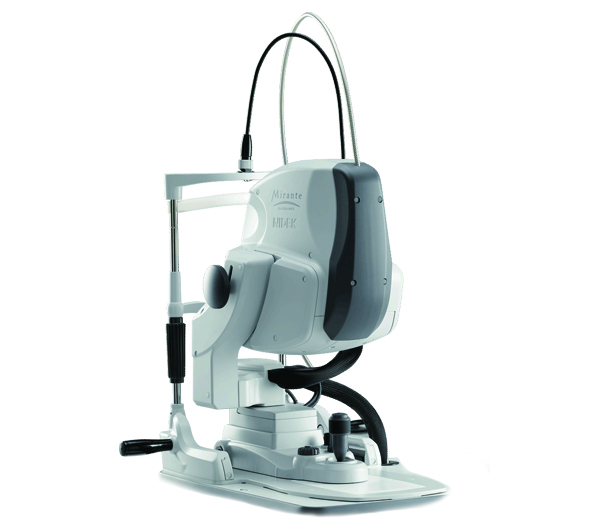

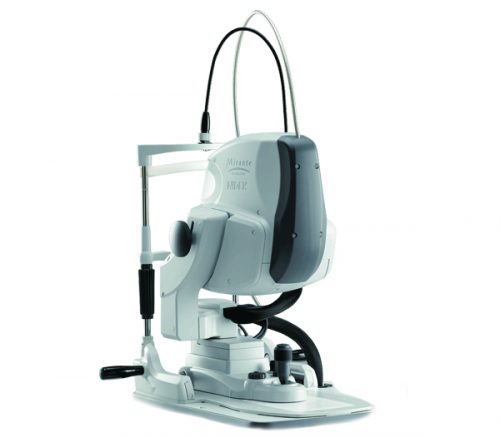

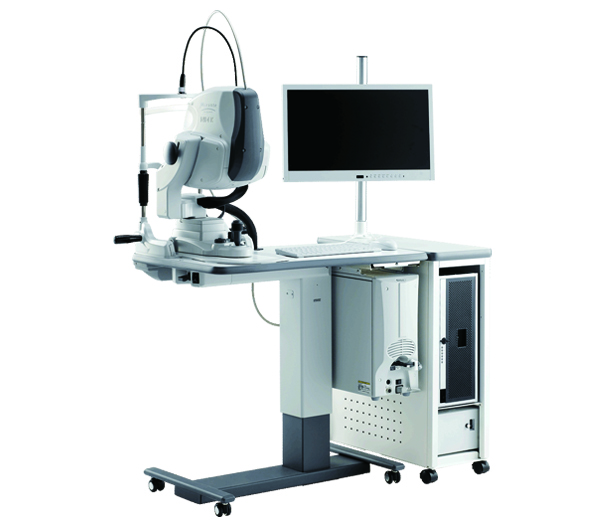

Scanning Laser Ophthalmoscope Mirante SLO/OCT Mirante SLO

Scanning Laser Ophthalmoscope Mirante SLO/OCT Mirante SLO

Features

  • The ultimate multimodal imaging platform
    For the SLO/OCT model
    – Color / FA / ICG / Blue-FAF / Green-FAF / Retro mode
    – OCT / OCT-Angiography*
    For the SLO model
    – Color / FA* / ICG* / Blue-FAF /Green-FAF / Retro mode
  • Ultra wide field x ultra HD image*
  • Unsurpassed color
  • Dynamic/Simultaneous FA and ICG
  • Unique Retro mode
  • HD wide area OCT
  • Fly Through function* Optional
Category:

Nidek Scanning Laser Ophthalmoscope Mirante SLO/OCT Mirante SLO

The ultimate multimodal imaging platform

For the SLO/OCT model
– Color / FA / ICG / Blue-FAF / Green-FAF / Retro mode
– OCT / OCT-Angiography*
For the SLO model
– Color / FA* / ICG* / Blue-FAF /Green-FAF / Retro mode

* Optional



Ultra wide field x ultra HD image *

163° ultra wide field image
The clear image of the entire 163° field of view** enables detailed evaluation of pathologies from the fovea to the extreme periphery.

* Ultra wide field imaging is available with the optional wide-field adapter.
** Measured from the center of the eye

Ultra 4K HD and averaging function for unparalleled clarity
4,096 x 4,096 pixel imaging captures every detail of the retina and choroid. Additionally, zooming in allows high magnification, clear visualization of subtle changes in pathology, and resolution of the fine details of capillaries.
New FlexTrack algorithm corrects image distortion due to unstable fixation and enhances averaging quality.



Unsurpassed color

Three separate RGB detectors simultaneously scan different depths of retina with red, green, and blue wavelengths. A color histogram is available for fine adjustment based on pathology or practitioner preference.

FA and ICG *

HD dynamic angiogram
Videos can be recorded at a maximum of 1,024 x 1,024 pixels for up to 120 seconds. Multiple short videos can be recorded during the same measurement.

Simultaneous FA and ICG
The Mirante allows simple, simultaneous acquisition of FA and ICG images.
The live IR monitoring enables alignment prior to fluorescence emission and reduces in the risk of missing the very early phase of angiography.
The Auto gain control (AGC) simultaneously adjusts contrast of each FA and ICG image, making the imaging of dynamic blood flow a very simple procedure.

* Available for the SLO/OCT model. Optional for the SLO model.



Retro mode

Retro mode is a unique non-invasive technique for detecting pathologic changes in the choroid.
This imaging modality uses scattered IR light to detect abnormal reflection in the choroid caused by drusen, edema and other subtle chorioretinal pathologies.

HD wide area OCT *

The maximum 16.5 x 12 mm area scan available with the Mirante allows wide area diagnosis including the macula and optic disc in a single shot. The ultra fine mode and tracing HD plus functions provide high quality images for detailed observation from vitreous to choroid.

* Available for the SLO/OCT model.



Fly Through function
The Fly Through function further enhances multimodal imaging by registering and synchronizing images from different modalities to view the same area while scrolling through the region of interest.



Images courtesy

Luigi Sacco Hospital, University of Milan, Italy
Doheny Eye Center, UCLA, USA
Retina Foundation & Eye Research Center, India
Exilaser Clinic, Peru
