Integre Pro Scan

Multi-Color Pattern Scanning Photocoagulation

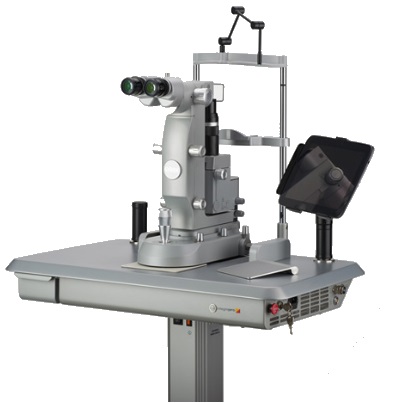

  • Ellex Integre Pro Scan

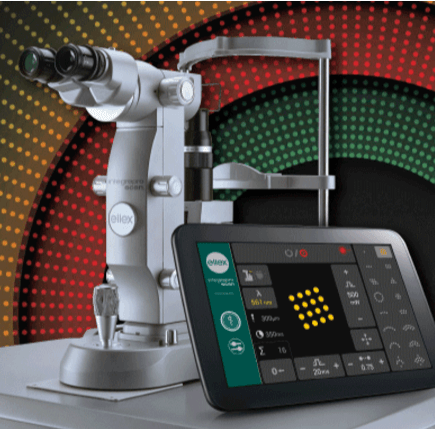

  • Ellex Integre Pro Scan

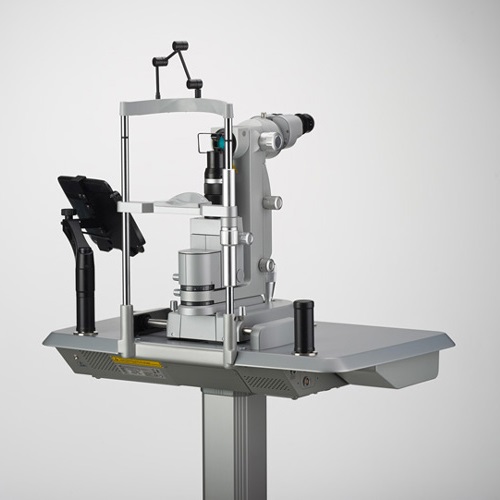

  • Ellex Integre Pro Scan

Integre Pro Scan

integrepro Integre PRO Scan combines multi-color photocoagulation with precise computer-controlled pattern scanning in our unique all-in-one laser/slit lamp design.

A Pattern and Wavelength for Every Pathology

Whether accurately positioning focal treatment in the macular area, or performing PRP in the periphery, Integre Pro Scan™ provides a pattern and wavelength for every pathology.

The system offers a comprehensive array of pattern combinations: shape, size, and rotation can be fully customized in order to best meet your clinical requirements. Patterns of up to 16 spots can be delivered sequentially, as well as single spots. In addition, the system’s computer-controlled operation ensures precise pattern spacing and consistent shaping of laser spots and patterns for more accurate, consistent treatment results.

Integre Pro Scan™ also provides a number of wavelength configurations, including two dual-wavelength configurations. This includes a high-power yellow and red configuration that delivers the full treatment spectrum of a traditional three-color
multi-color photocoagulator.

  1. yellow-red configuration (561 nm and 670 nm)
  2. green-red configuration (532 nm and 670 nm)
  3. green configuration (532 nm)
  4. yellow configuration (561 nm)

Predictable Treatment Outcomes

A proprietary ZenTec™ laser cavity delivers uniform energy distribution across the full diameter of the spot, eliminating hotspots and achieving optimal homogenous burns – delivering consistent, predictable treatment outcomes over a number of different operating conditions.

Designed to Maximize Your Workflow

Unlike other photocoagulator systems, which require an external dichroic or fixed mirror in order to connect the laser to the slit lamp, Integre Pro Scan’s unique, all-ine-one laser/slit lamp design channels the laser directly through the slit lamp optics. The end result is better visualization and optimal illumination. In addition, this integrated design minimizes system downtime, because there are no exposed fiber optic or electrical cables.

Category:

1. A Pattern for Every Pathology

The system offers a comprehensive array of pattern combinations: shape, size, and rotation can be fully customized in order to best meet your clinical requirements. Patterns of up to 16 spots can be delivered sequentially, as well as single spots. In addition, the system’s computer-controlled operation ensures precise pattern spacing and consistent shaping of laser spots and patterns for more accurate, consistent treatment results.

2. A Wavelength for Every Pathology

Integre Pro Scan™ provides a number of wavelength configurations, including two dual-wavelength configurations. This includes a high-power yellow and red configuration that delivers the full treatment spectrum of a traditional three-color multi-color photocoagulator.
561nm Yellow: maximal absorption in hemoglobin with negligible absorption in macular xanthophyll.
The 561nm yellow wavelength approximates the peak absorption of hemoglobin, is well absorbed by melanin in the retinal pigment epithelium (RPE) but has minimal absorption by xanthophyll in the neurosensory retina —making it ideal for treatments in and around the macula. It also produces less scatter, which permits superior transmission through existing opacities. With the 561nm yellow wavelength, you have more control over the laser-tissue interaction, which creates a more predictable, controlled burn. In addition, treatment can be performed at lower power levels, creating significantly less discomfort for the patient.
670nm Red: deep, gentle penetration for effective treatment of choroidal vessels.
The 670nm wavelength features low absorption by hemoglobin, improving its transmission through minor pre-retinal, sub-retinal or intra-retinal hemorrhage. In addition, its penetration depth is ideal for selectively treating choroidal vessels, while helping to preserve the integrity of the overlying retinal layers. 670nm offers less scatter than the yellow wavelength, making it ideal for transmission through a cloudy cornea or lens. The results are gentle, deep retinal tissue penetration and effective treatment of choroidal vessels.
532nm Green: the standard of care for common procedures, such as panretinal photocoagulation.
The 532nm wavelength is primarily absorbed by melanin and hemoglobin, making it ideally suited for treatment applications involving the RPE layer and new blood vessels. For example, pan-retinal photocoagulation (PRP).

3. Unparalleled View of the Fundus

Integre Pro Scan™ incorporates a custom-built optical system that is optimized for use in the posterior segment. Featuring a 10-degree stereoscopic angle, it provides excellent depth perception and a wide peripheral view. In addition, achromatic doublet lens technology provides a clearer view of the fundus and an optimal red-reflex in order to better observe the tissue-effect — allowing you to precisely titrate energy. As an added benefit, the combination of high-grade crown glass materials, multi-layered anti-reflection coatings and next-generation filter technology maximizes light transmission and provides an unparalleled color-balanced view of the retina.

4. Predictable Treatment Outcomes

Featuring a proprietary ZenTec™ laser cavity manufactured from high-grade components with kinematic mountings, Integre Pro Scan™ continuously monitors and adjusts power output to deliver uniform energy distribution across the full diameter of the spot, eliminating hotspots and achieving optimal homogenous burns. Not only does this ensure the integrity of the system and its performance, but it also ensures more consistent performance over a number of different operating conditions.

5. Intuitive Touchscreen Interface

Intuitive touchscreen interface for easy, quick adjustment of all treatment parameters, including laser power, pulse duration, pattern selection and pattern size. The touchscreen can also be angled toward the patient to aid the consultative process.

  • Favorites Gallery: store preferred patterns for fast, easy recall.
  • Pattern Gallery: flick through the “Pattern Gallery” using the joystick button to select your preferred pattern

6. Control at Your Fingertips

Integre Pro Scan™ offers a number of features designed to improve ease of use and maximize patient throughput, including:

  • Ambidextrous Track Pad for easy navigation of the retina and adjustment of treatment parameters and pattern characteristics: not only does this save you time, but it also allows you to perform treatment without the need to avert your eyes from the oculars.
  • Second fiber port to connect a laser indirect ophthalmoscope (LIO).
  • Range of pre-programmed lenses and a custom lens option, accessible via the touchscreen.

7. Fast, Efficient Treatment

Integre Pro Scan™ enables you to deliver a pattern of up to 25 laser shots in just 0.5 seconds, making it the industry’s fastest pattern scanning photocoagulator.

8. Designed to Maximize Your Workflow

Unlike other photocoagulator and multi-color laser systems, which require an external dichroic or fixed mirror in order to connect the laser to the slit lamp, Integre Pro Scan’s unique, all-in-one laser/slit lamp design channels the laser directly through the slit lamp optics for better visualization and optimal illumination. In addition, this integrated design minimizes system downtime, because there are no exposed fiber optic or electrical cables to accidentally damage.

9. Configured to Meet Your Needs

Configured to meet your needs, Integre Pro Scan™ can be combined with the Total Solution™ table range in order to meet the needs of ophthalmic offices, ambulatory surgery centers and hospital outpatient clinics.

Specifications

Laser Source solid-state laser diode and cavity (ZenTec™)
Wavelengths 1. yellow-red configuration: 561 nm and 670 nm
2. green-red configuration: 532 nm and 670 nm
3. yellow configuration: 561 nm
4. green configuration: 532 nm
Power at the Cornea Red: 50 – 1000 mW
Yellow: 50 – 1500 mW
Green: 50 – 1500 mW
Exposure Time Pattern: 10, 20, 30
Single Spot: 0.01 to 8.0 seconds
Patterns Linear (2 to 7 spots)
Rectangle (2×3, 2×4, 2×5, 2×6, 2×7)
Square (2×2, 3×3, 4×4, 5×5, 6×6)
Triangle (3, 6, 10, 15, 21 and 28 spots)
Circle – filled (7, 12, 19, 27 and 37 spots)
Circle – empty (12, 18, 24 and 30 spots)
Single Half Circle (4, 7 and 10 spots)
Double Half Circle (11, 17 and 23 spots)
Circle Sector 60 (3 to 7 spots)
Circle Sector 120 (5, 7, 9 and 11 spots)
Double Circle Sector 60 (5, 7, 9 and 11 spots)
Double Circle Sector 120 (8, 12, 16 and 20 spots)
Variable curve, double curve and filled sector
Spot Size Pattern: 100 to 500 μm, continuously variable
Single Spot: 50 to 1000 μm, continuously variable
Spot Spacing Pattern: 0 (touching), 0.25, 0.5, 0.75, 1.0, 1.25, 1.5, 1.75, 2.0 burn-width
Single Spot: N/A
Pulse duration Pattern: 10, 20, 30 ms
Single Spot: 10 – 8000 ms
Repeat Mode Pattern: N/A
Single Spot: 50 – 1000 ms
Aiming Beam red 635 nm, adjustable intensity
Magnification 6x, 10x, 16x, 25x, 40x
Cooling air cooled
Electrical Requirements 100-240 VAC, 50/60 Hz, 800 VA
Weight 35kg, 77 lbs. (laser only)
Dimensions (HxWxD) 62 x 76 x 47 cm, 24 x 30 x 19 inches (laser only)

*Specifications are subject to change without notice.

Accessories

Accessories (standard)

Total Solution™ Tables
Ellex Total Solution™ tables are designed to meet the needs of any environment. With the added benefit of comfort, flexibility and an optimized surgeon-patient interface, the Total Solution range of tables enable you to meet the alignment needs of even your most challenging patients.

  • Tablet
  • Track Pad
  • Footswitch
  • Safety Glasses
  • Laser Safety Sign
  • Dust Cover
  • Eye safety filter (motorized)

Accessories (optional)

  • Laser Indirect Ophthalmoscope (LIO)
  • Power Control™ footswitch
  • Beam Splitter
  • Co-observation Tube
  • 35mm Camera Adapter
  • Video Camera Adapter
  • Photocoagulation Laser Lenses

Image courtesy of Dimitri Yellachich, MD
(Australia)

Documents

IntegrePro Scan Product Brochure  Download
