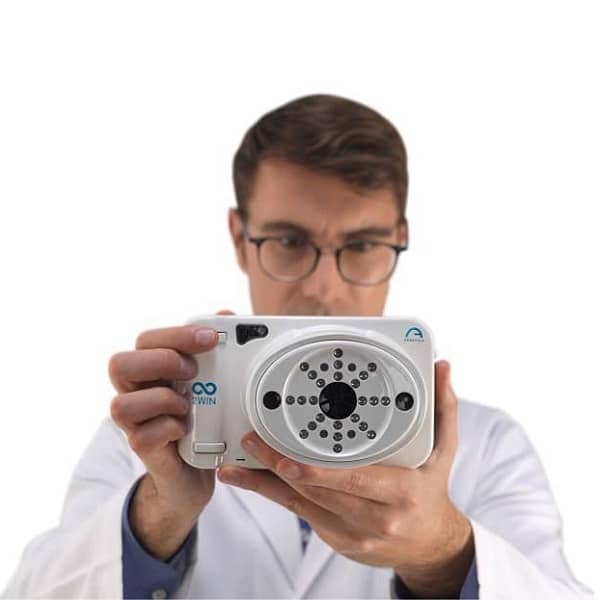

The 2WIN is a mobile binocular video refractometer and vision analyzer that measures both eyes at the same time, in real life vision conditions. It embodies the best and the most complete technologies to fully detect refractive errors, eye abnormalities and vision problems. It measures in the range of -15D to +15D for automatic measurement of dynamic pupils response to programmable light stimulations, and accurately center spectacle lenses.
2WIN-Binocular Vision Analyzer
Adaptica 2WIN
Benefits
2WIN enables you to perform refractometry by using the most innovative, versatile
and accurate technology.
BINOCULAR, 1 METER WORKING DISTANCE
Binocular refraction measurement in natural vision conditions.
DYNAMIC PUPIL RESPONSE
Dynamic pupil response to programmable light stimulations.
LENS CENTERING ON FRAME
Correspondence between the optic center of the lens and the actual visual axis of the eye.
EASY, QUICK, NON-INVASIVE
The 2WIN takes measures fast, in natural mydriasis and in a non-invasive way.
WIFI AND PRINTER CONNECTED
The 2WIN connects to the internet and allows you to share, record and print exams.
LONG LIFE OPERATED BATTERY
Long life batteries allow long intervals of use.
Key Features
- Extended measurement range
- Fully automated
- Binocular refraction
- Pupil diameter
- Dynamic pupilometry
- Check of lens correction
- Lens centering on spectacle frames
- Fully automated and easy to use
- Operates at 1 m (3’ 3”)
- Fast measurement
- Handheld and light weight
- Battery operated
- Allows the early detection of refractive errors
- Ideal with infants, children and non-cooperative patients
- No drops required
- Connectable to IR printer
- Customizable with additional features
Technical Specifications
- Operating mode: binocular/monocular
- Refraction Measurement: Automatic
- Sphere range: +15, -15 D, step 0.25 D
- Cylinder range: +5, -5 D, step 0.25 D
- Cylinder axis: 1° – 180°, step 1°
- Pupil size: Automatic detection, 4-11 mm, step 0.1 mm
- Pupil distance: Automatic detection, 30-120 mm, step 1 mm
- Fixation target: Built-in
- Acoustic target: Built-in
- Working distance: 1 m ± 5 cm
- Data Interface: Wi-Fi, USB, microSD card
- Printer interface: USB, Infrared (irda)
- Power: rechargeable battery
- Battery charger: 110-220 Vac, 0.5 A
- Size: 165x130x98mm
- Display: 3.5’’
- Weight: 840 g (30 oz)
- Options/Accessories: supplementary battery, battery-charger, metal case, Wi-Fi connectivity
