FR-1003 LED

  • frey fr-1003 led

FR-1003 LED

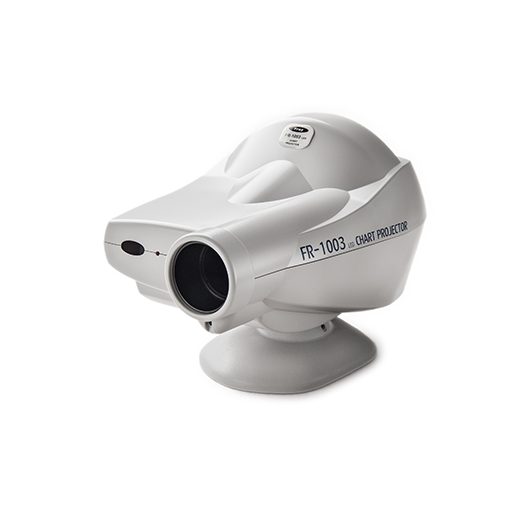

FR-1003 Chart Projector is a modern device for visual acuity testing. It is designed to ensure maximum durability and effectiveness. By using a LED light source, the device is maintenance free due to its up to 500 000 hours lifetime. Intuitive remote control allows you to program three customized test sequences. Projector comes with a remote control, projection screen, red-green and polarized glasses, and the base. Alternatively it can also be easily mounted on the refraction unit or onto the wall.

Versions of FR-1003 LED equipped with the Cyrillic charts are available.


Frey CP200 Large number of acuity test charts

A wide variety of available tests

Letters*, Pictures, Numbers, Snellen E, Landolt rings
Red-green panel, Polarized double panel
Astigmatism test, Fixation Point, Cross cylinder
Schrober test, Worth, Minute stereo, Duochrome balance
Phoria / Phoria with fixation, Vertical and Horizontal coincidence
Masks: vertical, single, horizontal, Polarized, Red-Green

*Cyrillic charts are available as an option



Frey LED Light Source

LED light source

The projector is maintenance-free (LED life time up to 500 000 h)
Brighter and clearer optotypes
Adjustable brightness of the presented optotype
The maximum power consumption is only 11W



Frey Friendly software and hardware

Friendly software and hardware

Programmable display sequence: 3 programs up to 15 tests
Keep visus function
Auto off function: 5/10/15 minutes
Quick chart selection
Adjustable refraction distance



Frey Atractive design

Attractive design

Streamlined Shape
Compact dimensions
Ergonomically designed and intuitive remote control
Possible to mount onto the wall, or your refraction unit to communicate with CP-600P chart panel in computer network and access test reports and educational materials stored on the device.

Technical Data

Number of charts 36


Chart to chart change time






Single, Vertical, Horizontal, Polarized, Red-Green


Avaliable charts Letters
Snellen E
Landolt rings
Red-green panel
Polarized double panel
Astigmatism test
Fixation Point
Cross cylinder
Schrober test
Minute stereo
Duochrome balance
Phoria / Phoria with fixation
Vertical and Horizontal coincidence
Refraction distance


Refraction distance


Light source


LED white


Background luminance


220 cd/m2 – adjustable




310 x 191 x 200mm (L/W/H)




4 kg


Projection tilt




Power supply


110 – 230 VAC 50/60 Hz


Power consumption 11 W
