CP-600P

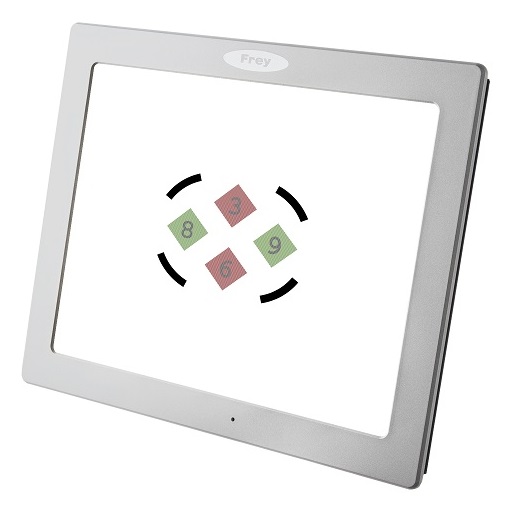

  • Frey cp-600p

CP-600P

CP-600P is an ophthalmic chart panel used for testing patients vision system quality, refraction state and stereo vision capabilities. Additionally it allows to test patient ability to recognize contrast and validate color recognition.

Frey Polarization charts

Polarization stereo tests

Advanced polarization filter technology used in CP-600P assures best available separation between patient visual channels combined with reach selection of binocular test charts makes CP-600P ideal tool for stereoscopic vision testing.





Frey CP200 Large number of acuity test charts

Rich set of available optotype charts

Tens of available test charts possible to display in few modes and scales allow user to select best method for patient test procedure.





Frey Patient EducationPatient education module

Patient education module of CP-600P provides user with memory for storing educational pictures and videos which can be used for explaining eye disorders to the patient.





Frey Test ReportTest reports

With help of remote control user may record results of patient test. At the end of test procedure report can be created and stored in device memory in .pdf format. The report can be transferred to external computer with use of USB memory stick or via WLAN connection





Frey Color Vision TestColor vision testing

CP-600P has build in color vision tests allowing to verify patient color recognition abilities.





Frey Contrast Sensitivity

Contrast sensitivity testing

Contrast testing can be performed on CP-600P using optotypes presented at different contrast level or for more demanding customers sinusoidal bar grading test can be used.





Frey Automated Phoroptor CommunicationAutomated phoroptor communication

CP-600P can communicate wireless with many available on the market automated phoroptors. This feature allows users to extend functionality of their existing phoropter systems by functionality not available from chart projectors.





Frey User Defined TestUser defined test sequences

For users willing to standardize their test procedures CP-600P provides programming function. Up to 3 programs can be defined by the user and then started with just one button click on the remote control.





Frey Wireless Connectivity OptionWireless connectivity option

Wireless communication is a feature available with optional USB WiFi module. It allows to communicate with CP-600P chart panel in computer network and access test reports and educational materials stored on the device.

Additional Information

sale price

20

Technical Data

Display size 24″ diagonal
Picture to Picture change time 0.5s
Refraction distance 2.9 to 6.1m
Background luminance 200 cd/m2
Auto power off 5,10,15 min – adjustable
Number of user defined programs 3 with 15 steps each
Power supply External
INPUT: 100 – 240 ~0.9A 50/60 Hz.
OUTPUT: 12.0V 3.0A DC
Power consumption 35W
Dimensions 605 x 370 x 30 mm (Length/Width/Depth)
Weight 3,8 kg
VESA mount hole pattern 200 x 100 mm

Test List

Frey Letter Charts

Letter charts

Available optotypes:
Sloan, Snellen, Cyrylic

Presentation modes:
Snellen, LogMar, Snellen modified, Snellen contrast, DIN





Frey Symbol Charts

Symbol charts

Available optotypes:
Standard, Allen, Hands, HOTV, HYVA, Symbols

Presentation modes:
Snellen, LogMar, Snellen modified, Snellen contrast, DINSnellen contrast, DIN



Frey Digit ChartsDigit charts

Available optotypes:
Standard, Digit type 1, Digit type 2, Digital

Presentation modes:
Snellen, LogMar, Snellen modified, Snellen contrast, DIN







CP200 - E Snellen Chart

E Snellen charts

Presentation modes:
Snellen, LogMar, Snellen modified, Snellen contrast, DIN







CP200 - C Landolt Chart

C Landolt charts

Presentation modes:
Snellen, LogMar, Snellen modified, Snellen contrast, DIN









Frey Heteroforia TestsHeteroforia tests – ( Haase tests )

Pointer vertical, Pointer horizontal, Pointer vert/horiz
Triangle 11mm stereo test, Triangle 20mm stereo test
Vertical Coincidence, Cross Test – dissociated Phoria
Stereo quaintitative, D5 Stereo quaintitative
D5 Cowen, Random stereo




Frey Polarization chartsPolarization charts

Bichromatic balance, Osterberg, Phoria von Graefe
Mallett ( red, vertical ), Mallett ( red, horizontal )
Mallett ( green vertical ), Mallett ( green horizontal )
Stereo circles, Worth, Phoria, Phoria with fixation
Accomodation balance, Minute Stereo
Vertical Coincidence, Horizontal Coincidence
3D randomized





Frey ETDRS Charts

STDRS Charts

ETDRS 1
ETDRS 2
ETDRS R
ETDRS, revision 2000 C1
ETDRS, revision 2000 C2
ETDRS, revision 2000 C3







Frey Snellen ChartsSnellen chart













CP200 Bailey-Lovie ChartBailey-Lovie chart













Frey Osterberg chart

Osterberg chart













Frey Crowding BarsCrowding Bars













Frey White Black test charts 1

White/black test charts

Cross Grid, Cross Grid ( white ), Grid ( children )
Cross Cylinder, Cross Cylinder( White )
Astigmatism Green, Astigmatism Snellen
Fixation point
Amsler







Frey red green test charts 1Red/Green test charts

Schober
Schober Red- Green
Worth
Four dot
Vertical Coincidence
Horizontal Coincidence
Stereo
Fixation Disparity



Frey color vision testing

Color vision tests

100 Hue
D15 saturated
D15 desaturated
Street lamp test
Ishihara





Frey Hearing Impaired

Hearing Impaired

Tests designed to simplify communication with Hearing Impaired patients.







Frey Other TestsOther tests

FAN and Block
Children pictures
Animations
SIRDS – Single Image Random Dot Test
