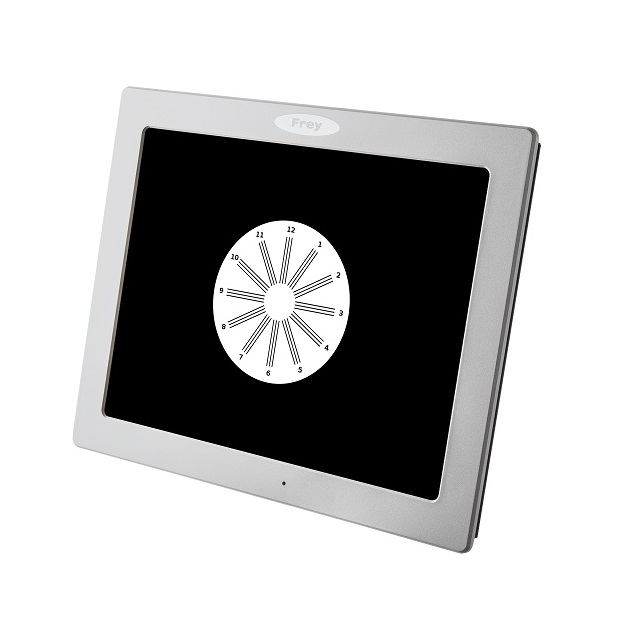

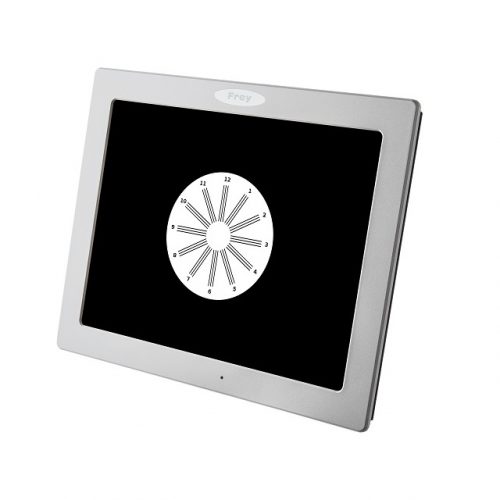

CP-200 chart panel provides comprehensive range of tests and features, designed to outperform contemporary digital acuity systems. In addition to standard optotype testing features the device offers Ishihara charts and extensive children tests supported by advanced fixation aids such as animations and color pictures.
CP-200
Large number of acuity test charts
Multiple test charts are available including letters charts, number charts, symbol charts. CP-200 provides multiple chart display modes and scales to allow user select best method for the test procedure.
Color vision testing
CP-200 has build in color vision charts allowing to verify patient color recognition abilities.
Technical Data
| Display size | 15″ diagonal, 3:4 aspect ratio |
| Dimensions | 365 x 291 x 30 mm (L/W/H) |
| Weight | 1,5 kg |
| Power supply | External INPUT: 100 – 240 ~0.9A 50/60 Hz. OUTPUT: 12.0V 3.0A DC |
| Power consumption | 27 W max |
Test List
Letter charts
Available optotypes:
Sloan, Snellen, Cyrylic
Presentation modes:
Snellen, LogMar, Snellen modified, Snellen contrast, DIN
Digit charts
Available optotypes:
Standard, Digit type 1, Digit type 2, Digital
Presentation modes:
Snellen, LogMar, Snellen modified, Snellen contrast, DIN
Symbol charts
Available optotypes:
Standard, Digit type 1, Digit type 2, Digital
Presentation modes:
Snellen, LogMar, Snellen modified, Snellen contrast, DIN
E Snellen charts
Presentation modes:
Snellen, LogMar, Snellen modified, Snellen contrast, DIN
C Landolt charts
Presentation modes:
Snellen, LogMar, Snellen modified, Snellen contrast, DIN
ETDRS charts
One ETDRS chart
Snellen chart
Bailey-Lovie chart
Crowding Bars
White/black test charts
Cross Grid, Cross Grid ( white ), Grid ( children )
Cross Cylinder, Cross Cylinder( White )
Astigmatism Green, Astigmatism Snellen
Fixation point
Amsler
Red/Green test charts
Schober, Schober Red- Green
Worth
Four dot
Vertical Coincidence
Horizontal Coincidence
Stereo, Fixation Disparity
Color vision tests
Ishihara
Hearing Impaired
Tests designed to simplify communication with Hearing Impaired patients.
