- Galileo parallel design for using, five magnifications
14mm aperture provides broader and clearer field of view
High sensitivity professional objective lens
German industrial bulb, high brightness without harsh, quick heat dispersion, also provide the low heating, high brightness and even lighting.
International standard accessory interface which can connect kinds of ocular posterior segment laser adapter and foldman tonometer
Digital upgrading interface. Can upgrade to digital slit lamp
Excellent optics performance, versatility and ease of use
Stereo variator, besretinal view even through small pupils
Ergonomic, wide aperture optics for fatigue free daily use

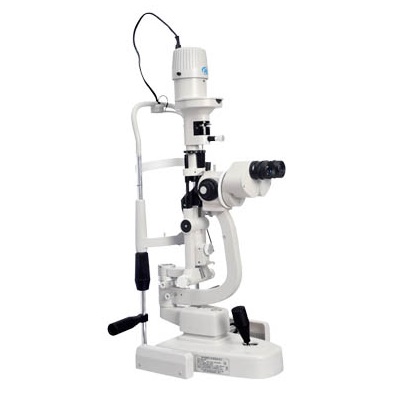

SLM-2 ER-E Slit Lamp
- Professional image analyzing, processing and management system; professional optics with CCD
- Professional optics with CCD
- Support for imaging & refractive devices
- Advanced image processing tools and management system
- Advanced query possibilities on database
- It is possible to use previously obtained data as a starting point for further operations.
- The windows for captures and for viewing images are TAB based,which provide a good overview
- Most important feature is the creation of advanced queries in the patient database.
- Professional software with video function
- Background illumination system;
- Flash function
- DICOM compliant
Technical Specifications
| Technical Specification | |
| Model | Digital Slit Lamp with CCD SLM-3ER |
| Microscope Type | Galileo Parallel |
| Image Capturing Way | CCD |
| Background Illumination | Yes |
| Magnification Change Way | Drum Five Magnifications |
| Eyepiece Magnification | 12.5x |
| Total Magnifications | 6x, 10x, 16x, 25x,40x |
| Diopter Adjustment | -5D ~+5D |
| Illumination | 5 Steps and Step less Optional |
| Slit Width | 0-14MM Continuous |
| Slit Height | 1-14MM Continuous |
| Slit Angle | 0°- 180° Adjustable |
| Slit Inclination Angle | 5°10°15°20° |
| Light Source | High Light Source |
| Light Spot Diameter | 0.2mm, 1mm, 2mm, 5mm, 10mm, 14mm |
| Filter | Heat Absorption; Grey; Redfree; Cobalt Blue |
| Fixation | Red LED |
| Electrical | |
| Illumination Bulb | German OSRAM Halogen Tungsten Lamp |
| Input Voltage | 110V/220V (±10%) |
| Input Power | 60VA |
| Diffuse Lens | Yes |
| Preset Lens | Yes |
| Laser Interface | Yes |
| Applanation Tonometer Interface | Yes |
