I.C.P. MGD Analysis

Typology: Device for evaluation of the meibomian glands

Camera: Colored, sensitive to Infrared (NIR)

Part examined: Upper and lower eyelids

Graphic result: Coloration absent area and present

Tools: Editor to highlight the area if the glands to be evaluated

Resolution: 8 mp

Light Source: Infrared LED

Rating: Calculation of percentage of missing glands

Automatic detection module area of Meibomian Glands

ICP can, in a guided way, detect the length and width of meibomian glands imaged by infrared meibography without requiring any input form the user.
The images are then automatically classified.

Through an acquisition of images, or by infrared camera, it allows the evaluation of the gland.
The criticality is made through five-level scale. The evaluation scales are an essential instrument for the registration and for the clinical monitoring of the modifies to the ocular tissues.
These scales are used to evaluate the gravity of a wide range of conditions, included those associated to the contact lenses.
The dysfunction of the Meibomian Glands (MGD, Meibomian Gland Dysfunction) is caused by a chronic alteration of the sebaceous glands that are located inside of the eyelids.

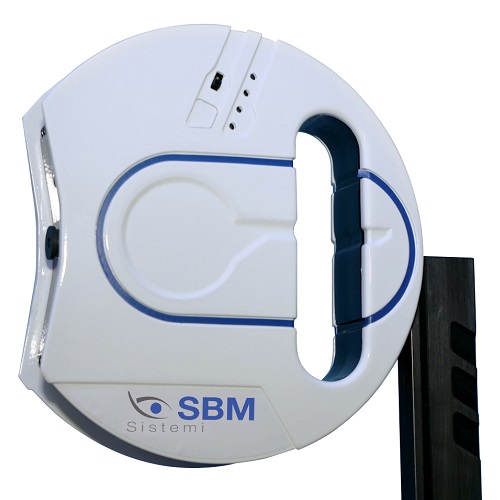

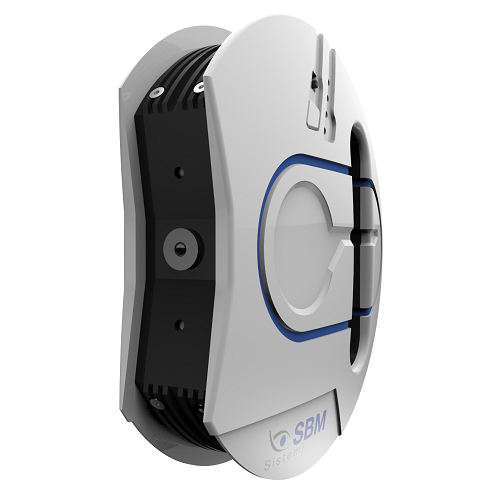

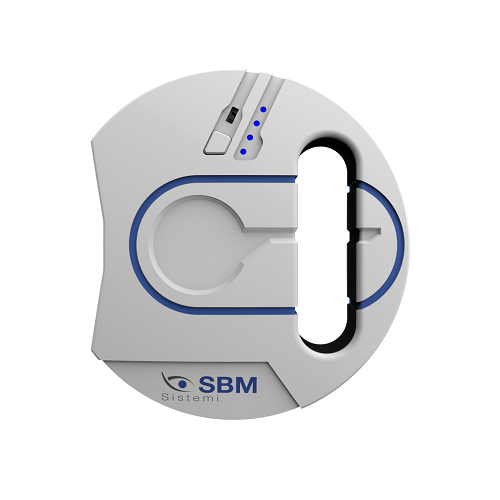

Thanks to the modular double LED illumination, the image will result ever without reflections and side effects. The instrument has the possibility to be used in a portable way or like fixed instrument in your clinic, exploiting a support that you can insert inside the hole of the tonometer on the slit lamp.

Technical Specifications

Tipology: Device for evaluation of the meibomian glands
Camera: Coloured, sensitive to infrared (NIR)
Resolution: 8 MPx
Light source: Infrared LED
Part examined: Upper and lower eyelids
Rating Calculation of the extension percentage in the glands detected through selection made by the operator or with recognize in a guided way
Calculation of percentage of missing glands
Graphic result Coloration absent area and present
Tools: Editor to highlight the area of the glands to be evaluated



Exam

System analysis

MGD - System AnalysisSystem analysis of the images obtained through a sensitive infrared camera (NIR) in order to locate in a guided way:
• The position detected from the image, valid both for the superior both for the inferior part of the eye
• Calculating percentage of the extension in area of the present glands, taken by the operator
• Calculating percentage of the area of the missing glands
• Absent and present coloring area
• Classification in 4 different degrees
• Loss between 0 and 25%
• Loss between 25 and 50% in yellow
• Loss between 50 and 75% in orange
• Loss between 75 and 100% in red
• Through the editor system is possible to modify the brightness of the picture for a better evaluation.



Meibography

MGD - MeibographyIt serves to build the morphology, diagnosis and drop out of the Meibomian Glands and for the diagnosis of the vital dysfunctions.
Meiboscopy is the visualization of the glands through trans-illumination of the eyelid with infrared light.
The software allows to analyze the working and not working areas, and to compare the glands of the patient with the diagnostic evaluation scales.
These glands produce oily lipid substances that are released to the eyelid margins reaching the tear film thanks to eyelid winks. Oily lipid substances floating on the surface of the tear film and needs to reduce evaporation. The MGD alters the lipid component of the tear film and this can cause the appearance of an evaporative dry eye with its characteristic symptoms. In severe cases, the MGD can also cause inflammation of the eyelids called blepharitis rear edge.



Automatic detection module area of Meibomian Glands

MGD - Automatic detection module area of Meibomian GlandsICP can, in case of a good quality of image, in a guided way detect the length and width of meibomian glands imaged by infrared meibography without requiring any input from the user.
The images are then automatically classified.
The analysis of the glands happens in an automatic way thanks to the advanced recognition software that studies the eyelid through the use of dedicated filters in real time after the acquisition.



Meibomian gland dysfunction (MGD) may well be the leading cause of dry eye disease throughout the world

Meibomian gland dysfunction (MGD) is a chronic, diffuse abnormality of the meibomian glands, commonly characterized by terminal duct obstruction and/or qualitative/quantitative changes in the glandular secretion. It may result in alteration of the tear film, symptoms of eye irritation, clinically apparent inflammation, and ocular surface disease. In a few seconds the instrument allow to take photo with 8MP resolution in infrared vision making visible in every environmental condition the presence/absence of the glands on the eyelids.



Problematic evaluation of the dry eye

MGD - Problematic evaluation of the dry eyeFor dry eye diagnosis are recommended a series of exams:
• Measurement of the blinking frequency and calculation of the inter blink interval
• Measurement of the height of the lower tear meniscus
• Measurement of the tear osmolarity (if available)
• Calculation of the tear film break up time (TFBUT) and the index of ocular protection (OPI)
• Classification of the corneal and conjunctival coloration with fluorescein
• Schirmer Test
• Phenol red test
• Quantification of the morphological characteristics of eyelids
• Squeezing: quantification of the squeezability and of the quality of the lipid component
• Meibography: quantification of atrophy.
