Binocular Accommodative Saccadic Series

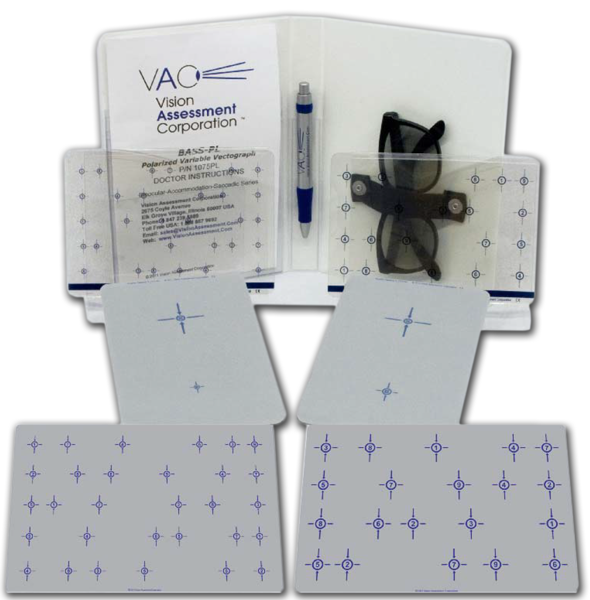

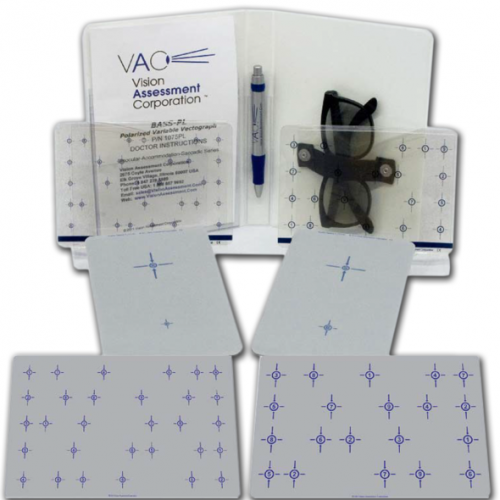

The BASS-PL series is a highly sensitive measure of the relationship between Binocular alignment (fixation disparity) and Accommodative function (clarity) during a Series (stamina) of cognitively loaded Saccadic eye movement. This series is designed to be a more dynamic measure of binocular/accommodative function during a saccadic eye movement task by involving a sequence of saccadic indentification targets at two acuity levels; 20/100 & 20/63. Complete system includes: therapy binder and pen, pair of polarized viewers, instruction manual, set of 20/100 target and vectographs and a set of 20/63 target and vectographs.

Item #: BASSPL+

Vision Therapy System for use in a doctor’s office and/or for use by the patient at home to help prevent regression between office visits. Provides a therapeutic approach for reducing patients’ symptoms related to their binocular dysfunction while improving their visual performance and reading efficiency.

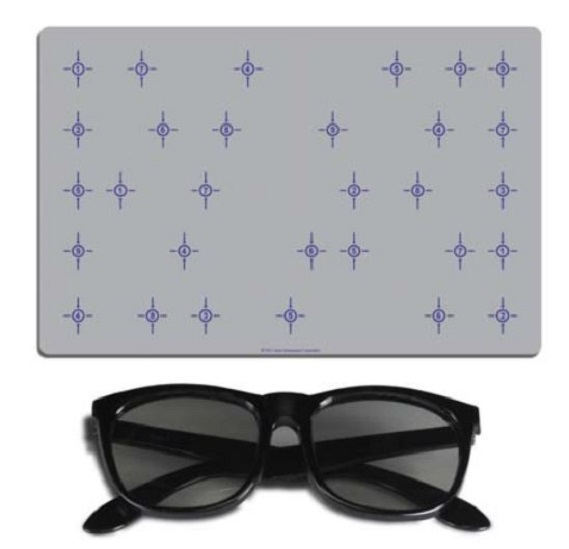

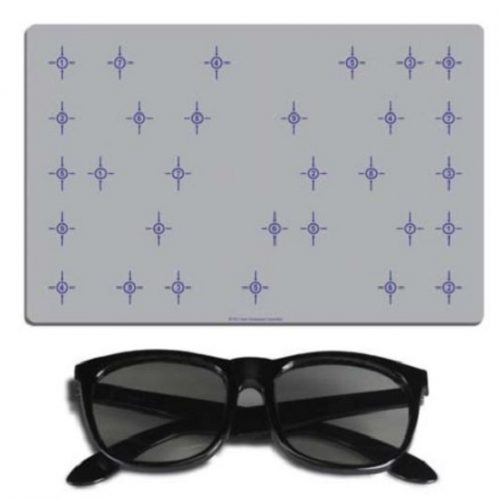

1071PL-LS – Large Saccadic Polarized Variable Vectograph

Treatment Vectograph with four rows of saccadic Fixation Disparity Cross stimuli presented at a 20/100 acuity level, reflective of the visual demands of larger print books. Fixation Disparity Target stimuli with Number Central Fusion Lock help relate binocular alignment to accommodation (clarity of the target). Total accommodation range of 40 diopters.

Includes: Protective Therapy Binder with pen, Doctor Manual & Standard Polarized Viewer

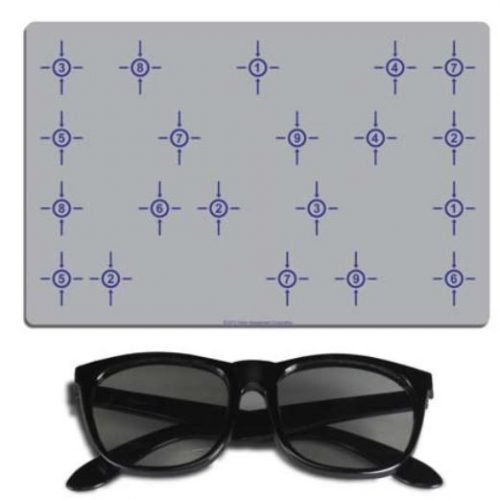

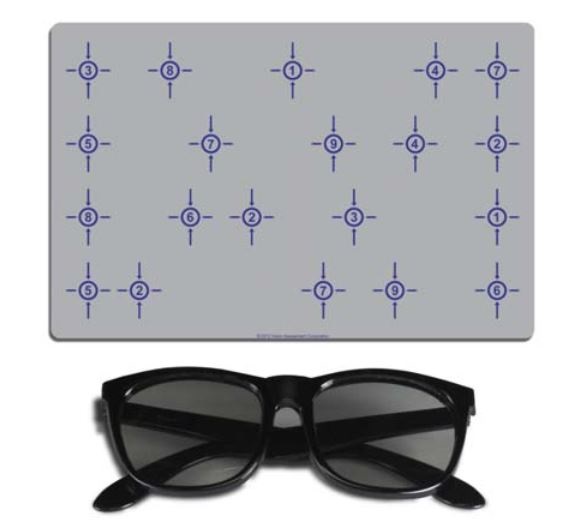

1071PL-SS – Small Saccadic Polarized Variable Vectograph

Treatment Vectograph with five rows of saccadic Fixation Disparity Cross stimuli presented at a 20/63 acuity level to monitor visual, binocular & accommodative functions more reflective of reading demands at higher grade levels (smaller print books). Fixation Disparity Target stimuli with Number Central Fusion Lock help relate binocular alignment to accommodation (clarity of the target). Total accommodation range of 40 diopters.

Includes: Protective Therapy Binder with pen, Doctor Manual & Standard Polarized Viewer

1071PL-SFD – Small Fixation Disparity Polarized Target

Vectographic two-dimensional card with 2 Fixation Disparity Crosses positioned vertical to one another to facilitate the comparison of binocular performance when using a lower versus higher spatial frequency or acuity demand. Top Fixation Disparity Cross at 20/95 acuity level reflective of visual demands of larger print books and bottom Fixation Disparity Cross at 20/63 acuity level more reflective of reading demands at higher grade levels (smaller print books). Sensitive to suppression and measures vertical & horizontal binocular function for assessing Near Point of Fixation Disparity (NPFD) (50 inches / 127cm) & Associated Vergence Measures at Near (16 inches – 18 inches/ 41cm – 46cm). Two-dimensional Fixation Disparity Cross stimuli with E Central Fusion Lock help relate binocular alignment to accommodation (clarity of the target).

1071PL-LFD – Large Fixation Disparity Polarized Target

Vectographic two-dimensional card with 2 Fixation Disparity Crosses positioned vertical to one another to introduce the new Fixation Disparity Cross design (bottom cross at 20/100 acuity level), as used as saccadic stimuli in the Binocular Accommodative Saccadic Series (BASS-PL), and to facilitate comparison to the standard Fixation Disparity Cross (top cross at 20/95 acuity level) as used in the Binocular Vision Dysfunction Diagnostic & Treatment System (P/N 1070PL). Sensitive to suppression and measures vertical & horizontal binocular function for assessing Near Point of Fixation Disparity (NPFD) (50 inches / 127cm) & Associated Vergence Measures at Near (16 inches – 18 inches / 41cm – 46cm). Two-dimensional Fixation Disparity Cross stimuli with E Central Fusion Lock help relate binocular alignment to accommodation (clarity of the target)

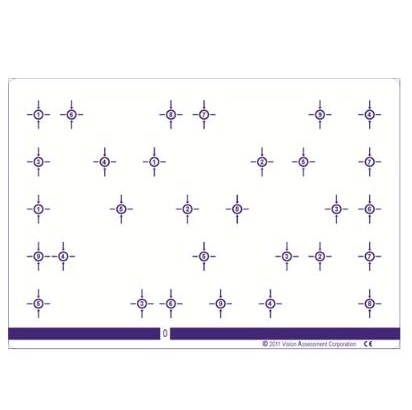

1071PL-RL – Randomized Large Fixation Disparity Polarized Target

Assessment tool for measuring binocular/accommodative function during a saccadic eye movement task using a sequence of saccadic identification targets. Vectographic silvered card with four rows of saccadic Fixation Disparity Cross stimuli presented with a 20/100 target size, reflective of the visual demands of larger print books. Two-dimensional Fixation Disparity Cross stimuli with Number Central Fusion Lock help relate binocular alignment to accommodation (clarity of the target). Answer Key imprinted on back of card for checking number accuracy.

1071PL-RS – Randomized Small Fixation Disparity Polarized Target

Assessment tool for measuring binocular/accommodative function during a saccadic eye movement task using a sequence of saccadic identification targets. Vectographic silvered card with five rows of saccadic Fixation Disparity Cross stimuli presented with a 20/63 target size to monitor visual, binocular & accommodative functions more reflective of reading demands at higher grade levels (smaller print books). Two-dimensional Fixation Disparity Cross stimuli with Number Central Fusion Lock help relate binocular alignment to accommodation (clarity of the target). Answer Key imprinted on back of card for checking number accuracy
