B-Scan Plus

B-Scan Plus

The B-Scan Plus’ and B-Scan Plus Vet’s proprietary software combined with unique probe electronics make it the only portable High Definition B-Scan. While developing the B-Scan Plus software, Accutome visited many of the top facilities around the world. The results are a reliable and easy-to-use unit, which can quickly scan patients and transport information.

Features:

  • 0.015 mm resolution is among the highest in the medical industry.

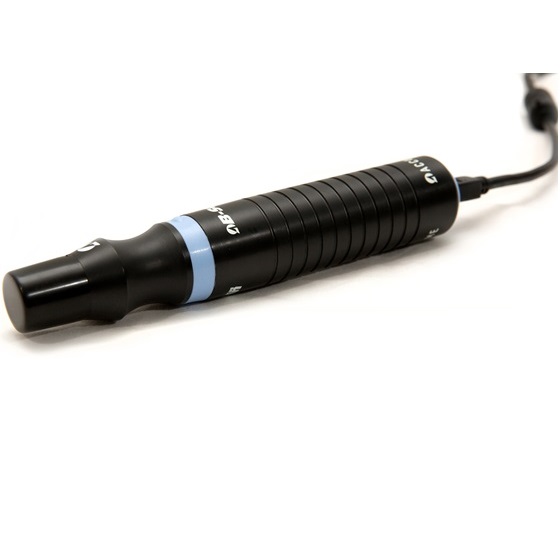

  • State-of-the-art probe design is sharper, more focused images due to the elimination of signal loss.
  • Contains 4 useful measuring tools along with corresponding A-Vectoring for diagnosing ocular pathologies.
  • The only unit with 2x full image zoom without distortion of real-time or captured scan.

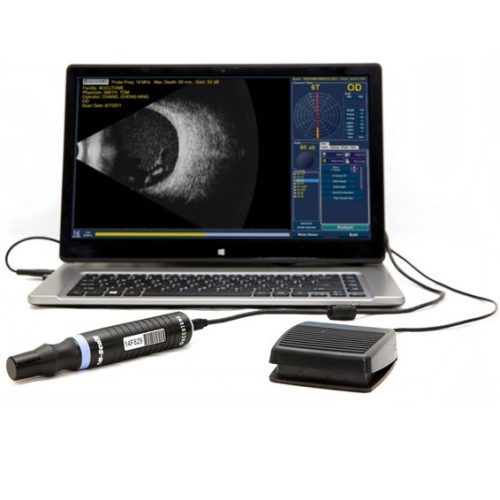

  • Portable probe can plug into any laptop or PC.*
  • Unlimited 34 second film loops.
  • Share Information Easily with adaptable document transfer via EMR, email or printer.
  • Compact file storage is unsurpassed by the competition.
  • Protect your investment with easily upgradeable software.
  • User-friendly interface makes user manuals and quick start guides unnecessary.
  • The B-Scan Plus sofware is now DICOM compatable.

* Certain Computer Specifications Required.

Category:
Accessories:
  • Durable Traveling Case
  • Probe Holder
  • Footswitch
  • Wireless Mouse

Specifications

  • Adjustable Gamma: Linear, S-Curve, Log, Color
  • Axial Resolution: 0.015mm Electronic
  • Data Archive/Export Capability: Yes
  • Dimensions: 7″L x 1.25″ Diameter
  • Field Of View: 12 MHz = 64mm or 15 MHz = 52mm
  • Focal Point: 22mm
  • Focal Zone: 20mm
  • Frame Rate per Second: 15, 30 max
  • Frequency: 12 or 15 MHz
  • Frozen Image Gain Adjustment: Yes
  • Gain: 0-112dB
  • Lateral Resolution: 0.0085mm Electronic
  • Measurement Calipers with Velocity Adjustment: 4 Line, 2 Area, 2 Angle

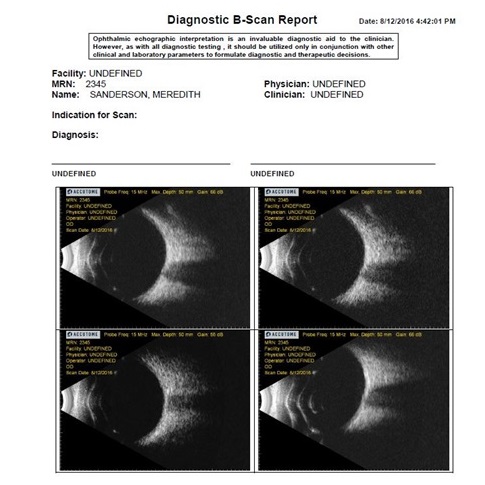

  • Reports: Integrated Microsoft Word
  • Scanning Angle: 60 Degrees
  • Size Of Cine Loop: 16-128 MB
  • Snapshot Format: jpeg, png, tiff, gif
  • TGC: Yes
  • Weight: 6 oz.
  • Zoom: 2x optical zoom, 8x maximum

Documents

Pro vs. Plus  Comparison between the B-Scan Plus and B-Scan Pro Download

B-Scan Plus Flyer : Overview of the B-Scan Plus Download

B-Scan Plus DICOM : The B-Scan Plus is now DICOM compatible Download
